Description
0408 vibrator phone industrial vibrators small vibrator electromagnetic
Description

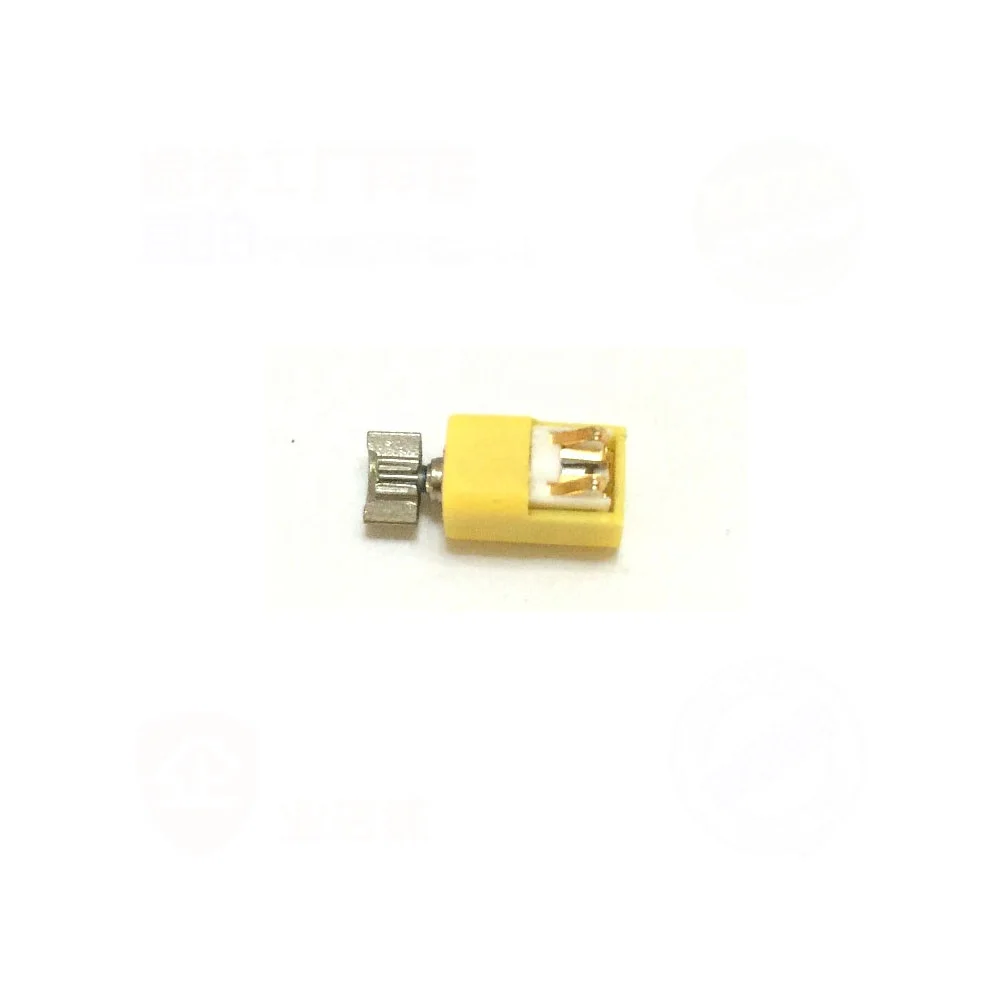

Hollow cup vibration motor, hollow cup vibration motor p4 series technical parameter reference (take YDM0408H-02 as an example): Rated voltage: 3. 0V DC Use voltage range 2.5~4.0V DC Rated load eccentric hammer (refer to relevant drawings) Direction of rotation Use environment -20 ° C ~ +60 ° C Storage environment -30°C~+70°C Rated speed 11000±3000 RPM Min Current 90mA Max Stall current 120mA Max Starting voltage 2.4V DC Max Insulation resistance 10M2Min Terminal impedance 309+15% (single phase) 11 609+15% (duplex)
