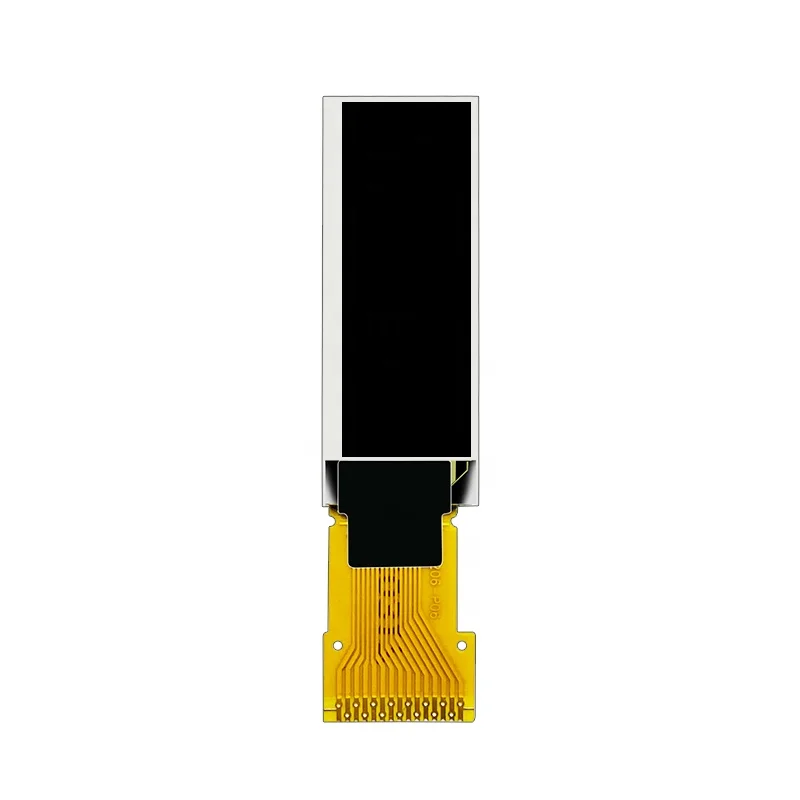

0.91 Inch OLED Screen 15 Pin 128 * 32 Dot Matrix Display Module SSD1306 UG-2832HSWEG04 4 Wire SPI

Matrix Display Module
$3.32
Specification : 0.91 inch
Model Number : UG-2832HSWEG04
Color : White
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
0.91 Inch OLED Screen 15 Pin 128 * 32 Dot Matrix Display Module SSD1306 UG-2832HSWEG04 4 Wire SPI
Product Description
0.91 inch OLED display 12832 dot matrix drive SSD1306 UG-2832HSWEG04 welding 15PIN
Specification
item
value
Product name
OLED display
Product size
0.91 inch
Resolution
128x32
Viewing direction
full viewing angle
Driver chip
SSD1306
Interface type
4-wire SPI
Physical size
30x11.5x1.45 (mm)
Display area
22.384x5.584 (mm)
Pixel size
0.159x0.159 (mm)
Dot pitch
0.175x0.175 (mm)
Number of pins
welding 15pin
Working voltage
1. 65-3.3V
Working temperature
-30~+70°C
Display color
white/blue
Installation Instructions
Size
Outline Drawing: According to the annexed outline drawing Number of Pixels: 128 x 32 Panel Size: 30.0x 11.50x 1 .45 (mm) Active Area: 22.384 x 5.584 (mm) Pixel Pitch: 0.175 x 0.175 (mm) Pixel Size: 0.159 X 0.159 (mm) Weight: 1.05 (g)
Details Images
