0~360 Degrees 0.1~2000 Hz DDS Signal Generator Counter Screen Display High Precision High Frequency Signal Generator

Overview

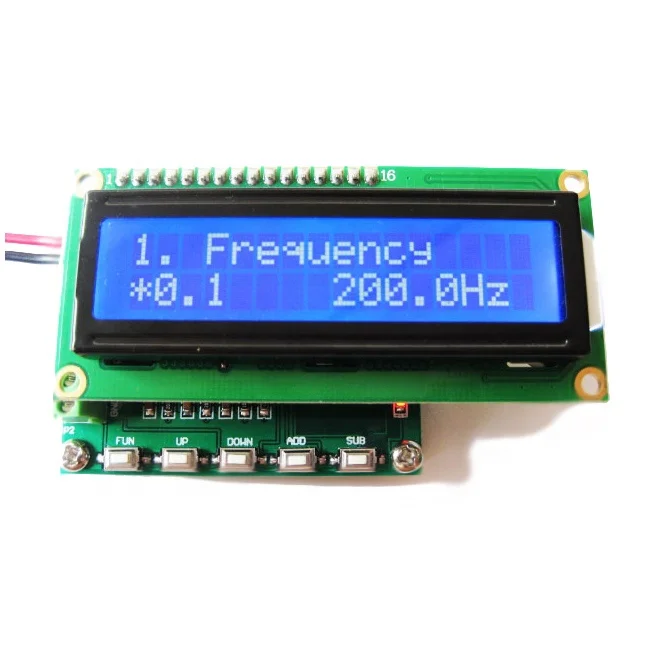

 HS380 is a three-phase sinusoidal signal generator, you can also control the amplitude. The maximum can produce 2.0KHz sine wave signal, the use of simple, through the key operation input frequency data.



product application

 Three-phase sine wave generation;
 signal generator;

technical parameters table

1 output frequency range 0.1 ~ 2000 Hz
2 Output frequency resolution 0.1 HZ
3 phase phase range of 0 to 360 degrees
4 phase shift phase resolution 1 degree
5 Signal amplitude 1 ~ 5 VDC Maximum amplitude 5.0Vpp
6 working voltage 7 ~ 12 VDC
7 Operating current <50 mA
8 Size 56 * 45 * 20 mm Length X Width X Height

the interface display and operating instructions

(1) Key Description:
FUN: function key; UP: switch down interface; DOWN: up set up interface; ADD: self-key; SUB: since the key;
4.1, set the output frequency
 Interface Display Font:
The first line "1. Frequency"
Second line "* 1 100.0Hz"
Key operation:
FUN: (select the operation bit of the setting data) (long press the FUN key to save the set parameter value)
ADD: self keying;
SUB: self key;
4.2, control the three-phase output voltage
Interface Display Font:
The first line "2.Output Voltage"
The second line "60n"
Key operation:
Set the measurement frequency range keys: (LEFT: self-keying)
4.3, set the A phase and B phase signal phase difference (A phase for the reference point)
Interface Display Font:
First line "3.A-> B Phase"
The second line "120C"
Key operation:
ADD: self keying;
SUB: self key;
4.4, set the A phase and C phase signal phase difference (A phase for the reference point)
Interface Display Font:
The first line "4.A-> C Phase"
Second line "* 1 240C '"
Key operation:
ADD: self keying;
SUB: self key;
4.5, set the start / stop output filter
Interface Display Font:
The first line "5. Filter SET"
The second line "Filter = ON"
Key operation:
ADD: start / stop;
Note: (1) start: output filter capacitor, the output sine wave signal.
(2) stop: output does not accept the filter capacitor, the output PWM signal.

wiring

P1 wiring definition:
No. symbolic meaning
1VDD module power supply positive (7V ~ 12V)
2GND module power supply negative

P2 wiring definition:
No. symbolic meaning
1Q3C phase signal output
2Q2B phase signal output
3Q1A phase signal output
4GND power supply negative (ground)
