Description

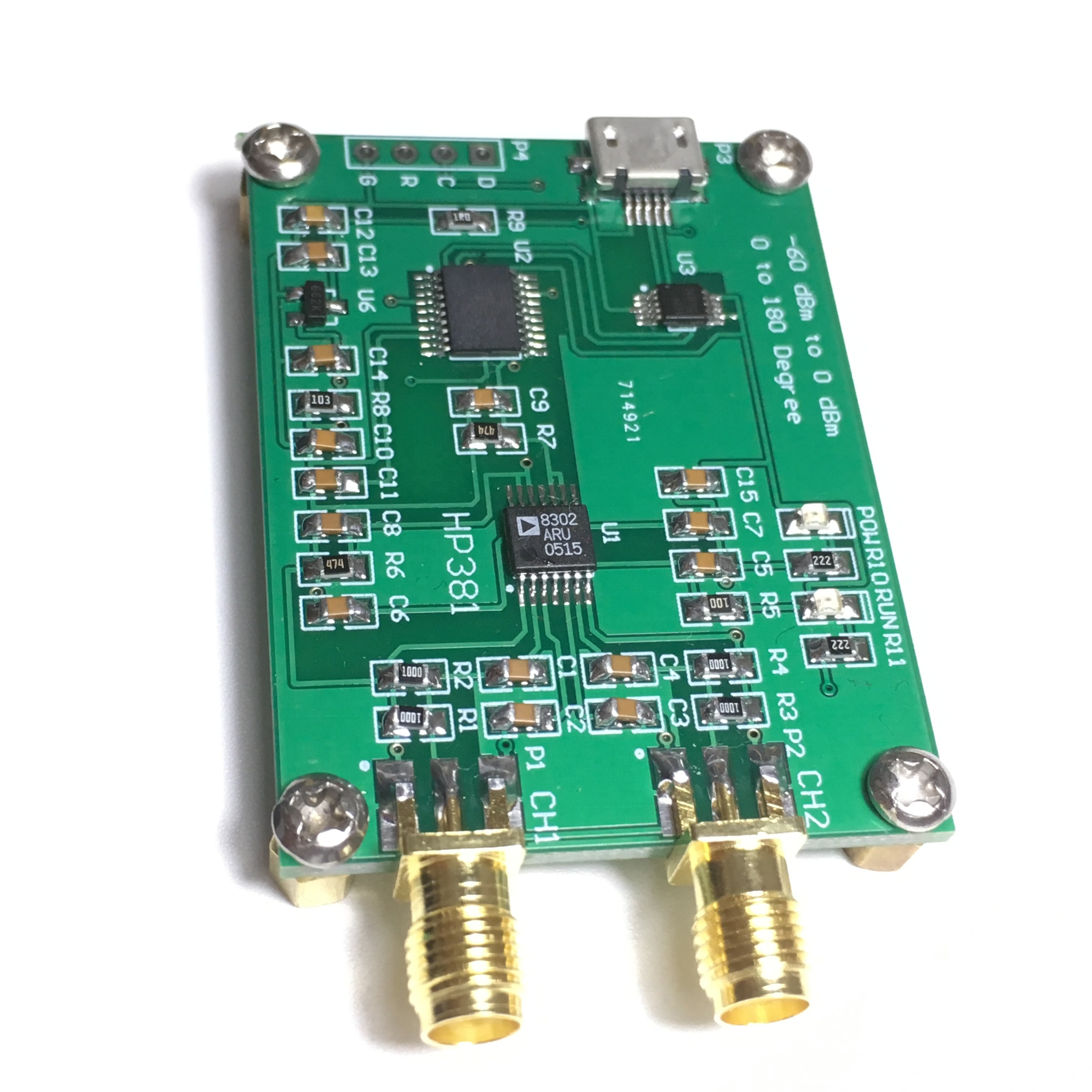

0~2700MHz Micro USB RF Power Measurement Calibration Gain and Phase Amplitude Detector IF Detector RF Power Detector
Product Description
HP381 is an amplitude and phase measuring instrument. The instrument is operated by the host computer. The advantages are: simple structure, convenient use, stable performance, reliability, high sensitivity and fast measurement speed.
Application
● RF power measurement; ● Meter calibration;
Specification
item
value
Measurement frequency range
0～2700MHz
Measuring input power
-62dBm～+2dBm (50 ohm input impedance)
Measuring scale range
-30dB～+30dB
Measurement scale resolution
0.1dB
Measuring the phase range
0℃～180℃
Measuring Phase Resolution
None
Operating Voltage
5V
Working current
<50mA
Operating temperature
-40℃～65℃
Storage temperature
-40℃～65℃
Size
50*38*10mm, length x width x height
Installation Instructions
P1 RF signal 1 input (VINA) P2 RF signal 2 input (VINB) Annotation: For power: VMAG = 20*log(VINA/VINB).
