Description

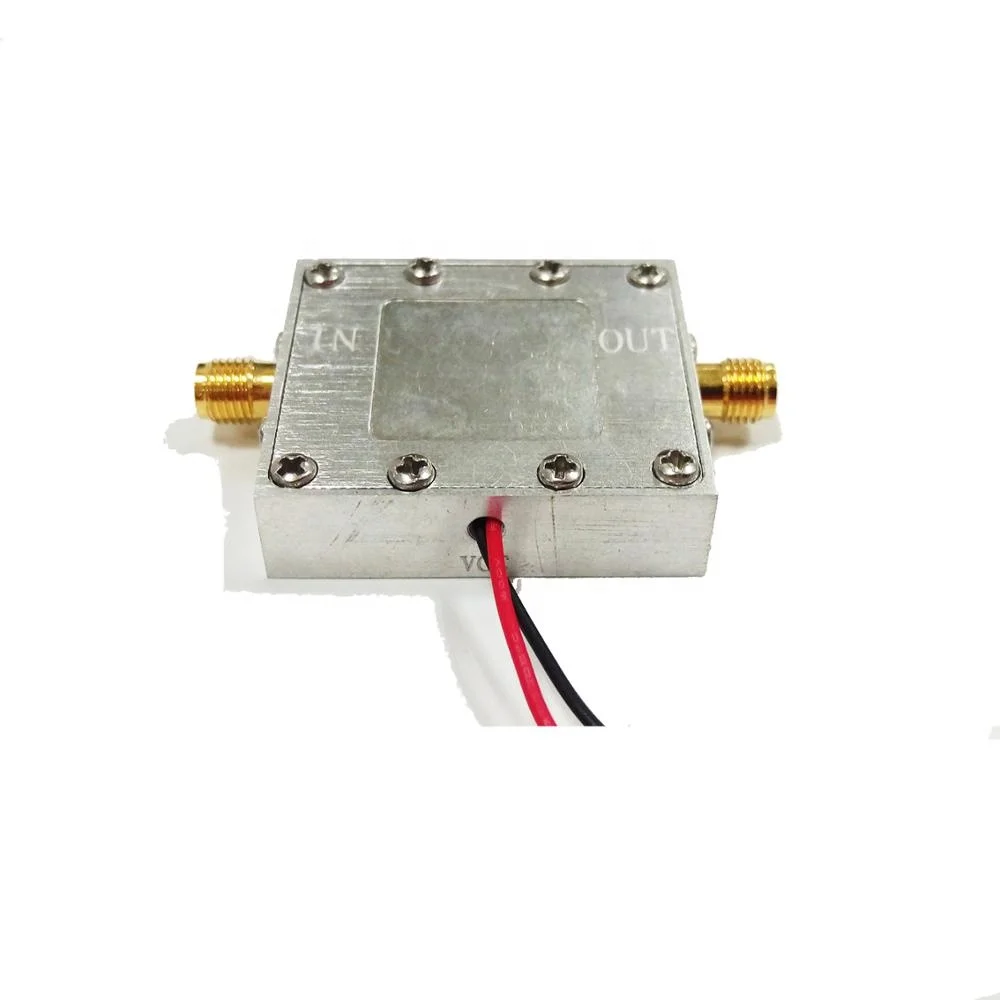

0.05-4GHz LNA Noise 0.8dB 46mA Beidou SPF-5043Z Low Noise RF Amplifier RF Signal Booster Radio Frequency Amplifier
Product Description
The RF amplifier must be connected to the load first, and then connected to the signal (power-on), otherwise it is easy to burn out.
Name: Low Noise RF Amplifier 0.05~4GHz Power supply: 5V Size: 37mm X 33mm Current: 46mA NF: 0.8dB
Specification
|
Low noise amplifier RF amplifier test data
|
||||||||||||||||||
|
Fre(MHz)
|
50
|
100
|
500
|
800
|
1000
|
1500
|
2000
|
2400
|
2800
|
|||||||||
|
Gain(dB)
|
20.34
|
20.01
|
21.73
|
19.99
|
19
|
17.44
|
13.24
|
13.11
|
12.37
|
|||||||||
